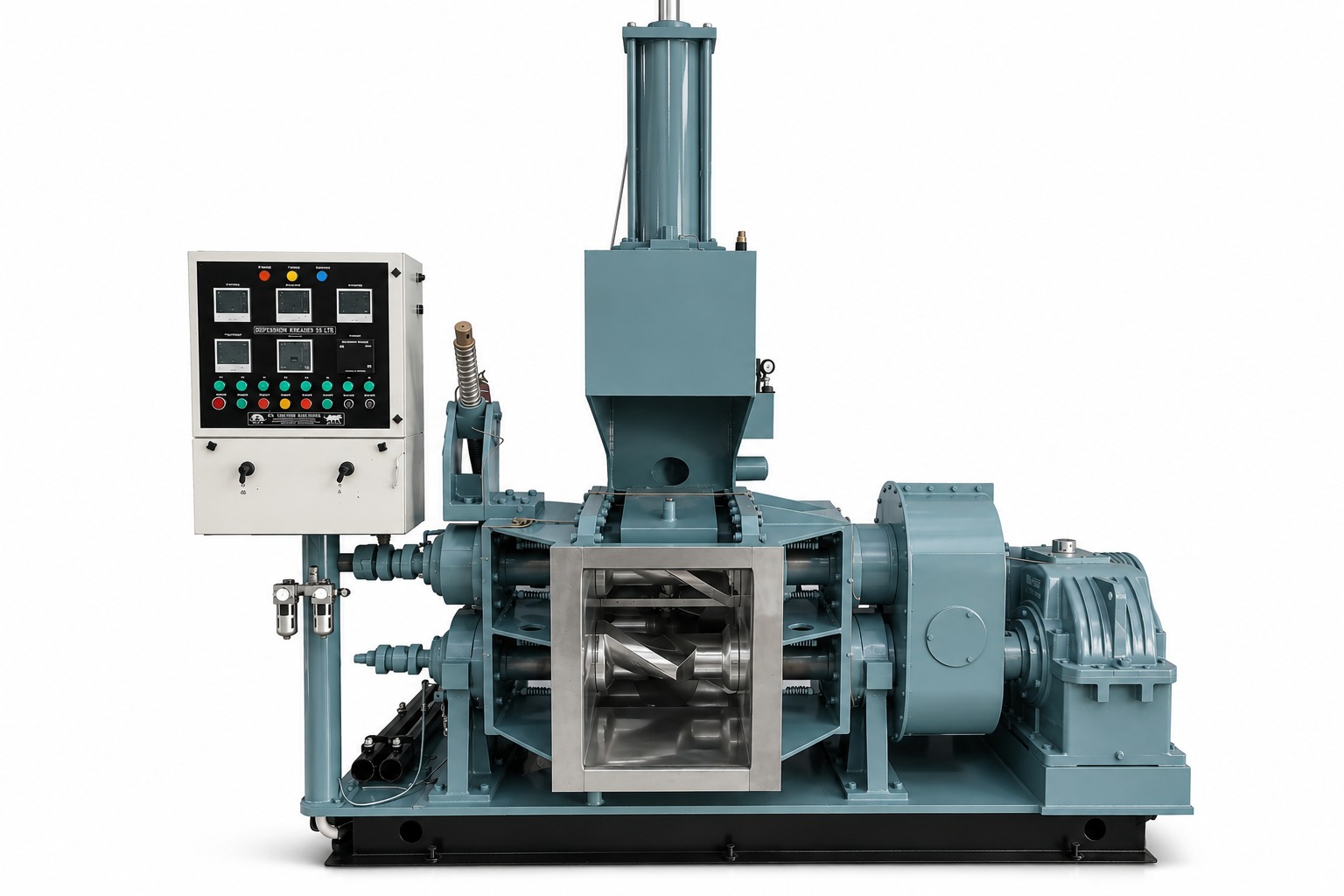

Rubber Dispersion Kneader Machines — 5 L to 300 L Capacities
S.R. Kneader Machines manufactures Rubber Dispersion Kneader Machines in a wide range of capacities suitable for laboratory, pilot and full-scale production requirements. Every model is built to deliver homogeneous compound dispersion, easy colour change cleaning, and simple operation with excellent techno-economic performance.
From low-viscosity adhesives to high-viscosity rubber compounds, our dispersion kneaders handle a broad spectrum of materials. The complete line is equipped with a cooling jacket that promotes efficient mixing and prevents material burning, ensuring consistent batch quality every time.
- 5 L to 300 L Capacity Range
- Hydraulic & Screw Tilting Options
- Jacketed Mixing Chamber & Rotors
- Made in India — Export Ready
Material Construction
Material Construction of Rubber Dispersion Kneader
The Rubber Dispersion Kneader ensures homogeneous compound dispersion, easy colour change cleaning and simple operation — a true techno-economic achievement. It combines a wide range of materials, from low viscosity adhesives to high viscosity rubber. The complete Dispersion Kneader line is built with a cooling jacket, which promotes mixing dispersion and prevents material burning.
Mixing Chamber
Fabricated alloy steel, hard faced, jacketed (both longitudinal and transverse) for steam heating and water cooling, and tilts for easy discharge and cleaning.
Mixing Rotors
Spirally annular design, made of alloy cast steel, with node tips that are internally cored for good temperature regulation. The nodes' land is hard faced and profiled.
Pressure Lid
Jacketed for effective heating / cooling, steel fabricated and hard faced at the mix contact area. Pneumatic and hydraulic variants available.
Dust Seal
Designed specifically to maintain a clean working environment, and easily replaceable when worn.
Applications
Applications of Rubber Dispersion Kneader
From automotive sealing components to medical-grade rubber products, our dispersion kneaders deliver a consistent, uniformly dispersed compound batch after batch.
Automobile Oil Seals & Body Seals
Precision rubber compounds for critical sealing applications.
Gaskets, Belts, Hoses & Tubes
Uniform dispersion for leak-proof, long-lasting components.
Rubber for Electric Wires
Clean, well-dispersed insulation and sheathing compounds.
Conveyor & Power Transmission Belts
High-integrity compounds for heavy-duty belt production.
Rubberized Rolls
Consistent hardness and finish across the full roll body.
Medical Line Rubber Products
Plugs, caps, gloves and dental supplies made from rubber.
Technical Specifications
Compare All Models at a Glance
A complete overview of every Rubber Dispersion Kneader model we manufacture — from 5 L laboratory units to 300 L heavy-duty production machines.
| Model | Mixing Capacity | Chamber Volume | Main Motor | Tilting Method | Rotor Speed (F/R) | Tilting Angle | Tilting Motor | Air Compressor | Origin |
|---|---|---|---|---|---|---|---|---|---|
| SRK 5 L - 15 L | 5 Litres | 15 Litres | 10 HP | Screw/Hydraulic | 28/32 RPM | 120°–140° | 2 HP | 2 HP | Made in India |
| SRK 20 L - 25 L | 20 Litres | 45 Litres | 25 HP | Screw/Hydraulic | 28/32 RPM | 120°–140° | 2 HP | 5 HP | Made in India |
| SRK 25 L - 30 L | 25 Litres | 50 Litres | 40 HP | Screw/Hydraulic | 28/32 RPM | 120°–140° | 3 HP | 5 HP | Made in India |
| SRK 35 L - 45 L | 35 Litres | 75 Litres | 60 HP | Screw/Hydraulic | 28/32 RPM | 120°–140° | 5 HP | 7.5 HP | Made in India |
| SRK 45 L - 60 L | 40 Litres | 80 Litres | 60 HP | Screw/Hydraulic | 26 / 30 RPM | 120°–140° | 7.5 HP | 7.5 HP | Made in India |
| SRK 55 L - 70 L | 55 Litres | 125 Litres | 75 HP | Screw/Hydraulic | 26 / 30 RPM | 120°–140° | 10 HP | 7.5 HP | Made in India |
| SRK 75 L - 100 L | 75 Litres | 170 Litres | 100 HP | Screw/Hydraulic | 26 / 30 RPM | 120°–140° | 10 HP | 10 HP | Made in India |
| SRK 100 L - 140 L | 100 Litres | 215 Litres | 120 HP | Screw/Hydraulic | 26 / 30 RPM | 120°–140° | 15 HP | 10 HP | Made in India |
| SRK 110 L - 150 L | 110 Litres | 220 L | 120 HP / 150 HP | Screw/Hydraulic | 24 / 30 RPM | 120°–140° | 15 HP | 15 HP | Made in India |
| SRK 125 L - 170 L | 125 Litres | 250 Litres | 150 HP | Screw/Hydraulic | 24 / 30 RPM | 120°–140° | 15 HP | 15 HP | Made in India |
| SRK 150 L - 200 L | 150 Litres | 280 L | 180 HP | Screw/Hydraulic | 24 / 30 RPM | 120°–140° | 20 HP | 20 HP | Made in India |
| SRK 200 L - 250 L | 200 Litres | 320 L | 220 HP | Screw/Hydraulic | 24 / 30 RPM | 120°–140° | 20 HP | 20 HP | Made in India |
| SRK 300 L - 350 L | 300 Litres | 400 L | 320 HP | Screw/Hydraulic | 24 / 30 RPM | 120°–140° | 20 HP | 20 HP | Made in India |
All specifications are indicative and may be customised
according to your material, batch size and production
requirements. Custom-built models are available on request.
Industries We Serve
Trusted Across Rubber & Plastic Industries
Our dispersion kneaders are running in plants producing tyres, automotive parts, cables, footwear and much more — across India and around the world.
Tyre & Tube Manufacturing
Automotive Rubber Components
Conveyor Belt Industry
Footwear Production
Electrical Insulation & Cable Sector
Rubber Rollers & Sheet Production
Built Around You
Customization Options Available
We understand every operation is unique. Share your material, batch size and plant layout with us — our engineers will build the kneader around your process, not the other way around.
Request a Custom Build- Capacity range from 5 to 200+ litres
- Front or rear tilting designs
- Manual or PLC control systems
- Rotor customization for specific mixing intensity
- Optional hydraulic drive systems
Our Strength
Why Choose S.R. Kneader Machines?
Two decades of engineering experience, certified manufacturing and a support team that stays with you long after installation.
ISO 9001:2015
Certified manufacturing processes
25+ Years
Of engineering experience
Strong Support
After-sales & technical assistance
Global Exports
UAE, Japan, Indonesia, South Africa & more
Trusted by leading rubber product manufacturers globally.
Application Gallery
Rubber Dispersion Kneader
Tyre

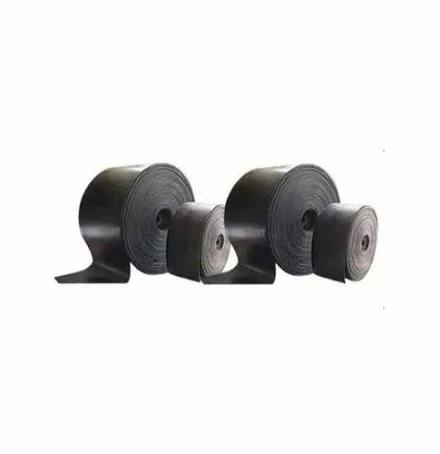

Conveyor Belts

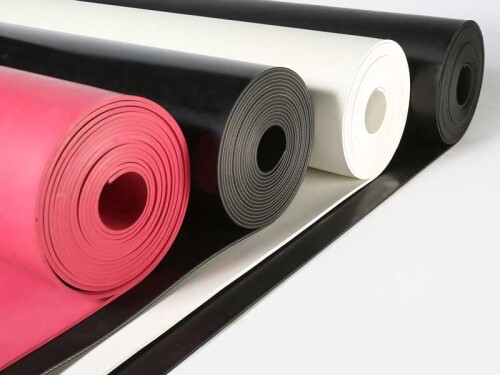

Rubber Sheets

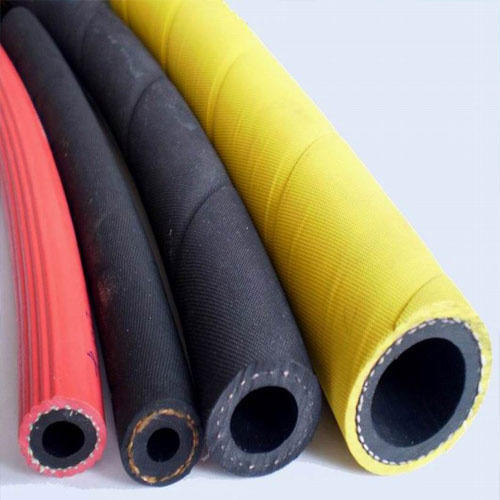

Hoses & Tubes

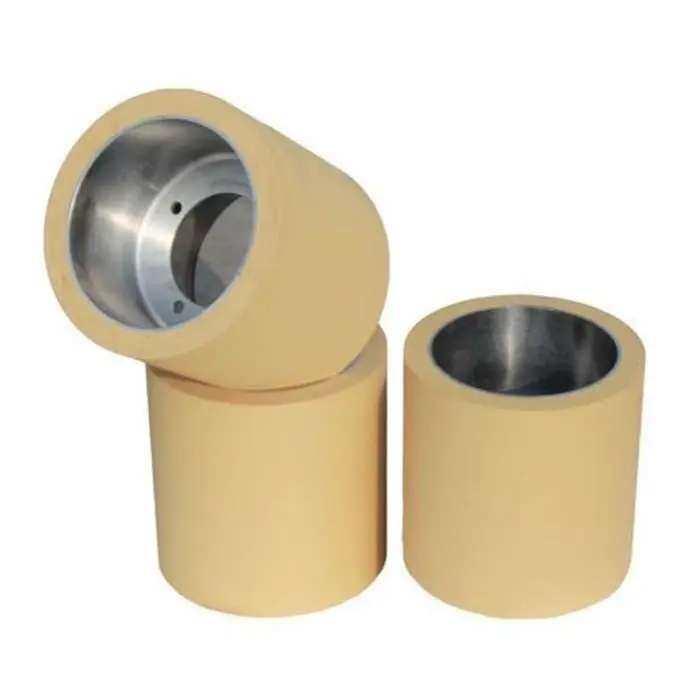

Rice Rubber Rollers

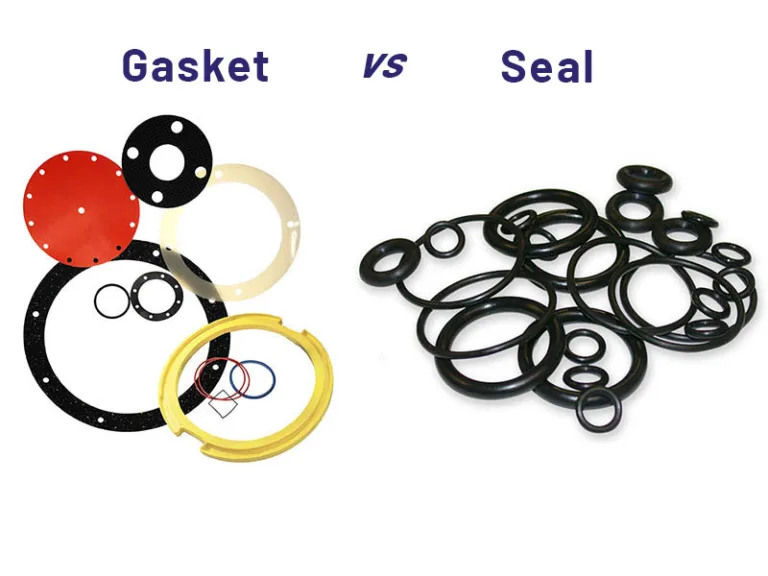

Seals & Gaskets
Compounding
Silicone Sheets
Common Questions
FAQs – Dispersion Kneader
Find answers to commonly asked questions about our machines, specifications, customization options and support — helping you make confident and informed decisions.
What is the function of a Dispersion Kneader?
A dispersion kneader is used to uniformly mix rubber or
plastic compounds by kneading them under controlled
temperature and pressure. It disperses chemicals, fillers,
oils and pigments evenly through the compound to produce a
homogeneous, consistent batch.
How do I decide the right capacity?
Capacity depends on your batch weight, compound density and
daily production target. As a guide, 5–25 L models suit
laboratories and small batches, 35–75 L models suit
medium-scale production, and 100–300 L models are built for
heavy-duty, high-volume plants. Share your batch size and
our team will recommend the ideal model.
Is it suitable for both natural and synthetic rubber?
Yes. Our dispersion kneaders handle natural rubber, SBR,
NBR, EPDM, butyl, silicone, PVC compounds and many other
polymers — as well as low-viscosity adhesives and
high-viscosity rubber compounds. Rotor and temperature
settings can be tuned to suit your specific material.
How do I maintain the machine for long life?
Regular lubrication of the gearbox and bearings, periodic
inspection of the dust seal, keeping the cooling jacket
clean, and prompt replacement of worn rotor tips will keep
your kneader running for years. We supply a
machine-specific maintenance schedule with every unit, plus
genuine spares and on-call technical support.
Can I integrate automation in the kneader?
Absolutely. We offer manual and PLC-based control systems
with options for automated temperature control, timed mixing
cycles, recipe storage, data logging and discharge
sequencing. Automation can be specified at the time of order
or retrofitted to many existing models.
